It is common to process PCB enclosures in Boyi’s CNC machining and milling workshop, with unparalleled precision and impeccable appearance. We can provide customers with CNC machining of aluminum, copper, stainless steel, plastic PCB enclosures from prototype manufacturing to small batch production. At the same time, our factory has aluminum profile manufacturing equipment, so if you need large quantities of PCB electronic housings, custom extrusion process is an ideal choice.

What is CNC Machining for PCB Enclosures?

CNC machining is a subtractive manufacturing process. It uses computer-controlled cutting tools to selectively remove material from a solid block (called a blank or billet) to create a custom part or component.

For enclosures, this typically involves taking a block of metal (such as aluminum, copper, stainless steel) or engineering-grade plastic (like ABS or Polycarbonate) and milling out the internal cavity, external features, and all necessary holes and cutouts with incredible accuracy.

When Should You Use a CNC Machined PCB Enclosures?

Due to the diversity and accuracy of CNC machining, it is more practical for：

• Prototypes Processing: For design validation just before mass production.
• Low-Volume Production: For batches of 10 to 100 of units where the cost of extrusion molding tooling is prohibitive.
• Premium End Products: For products where quality, durability, and aesthetics are paramount (e.g., audio equipment, scientific instruments, electronic products).
• Enclosures Demanding Thermal/EMI Management: Where the material properties of aluminum are a functional requirement, not just a nice-to-have.

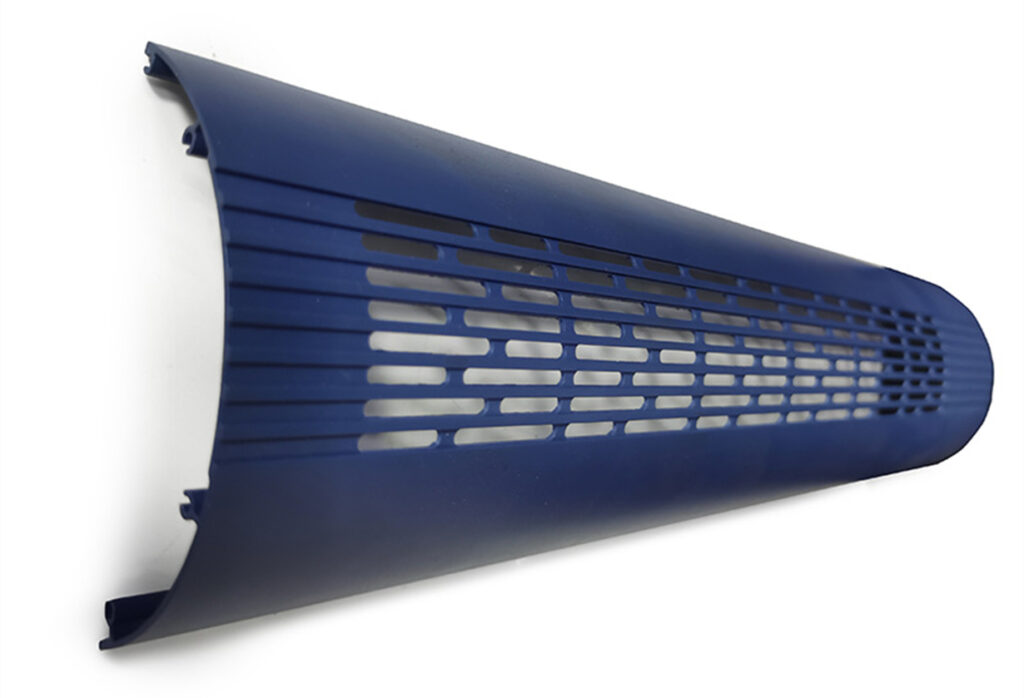

Why Choose a CNC Machined Electronic PCB Enclosure?

Unbeatable Precision and Perfect Assembly

CNC machines offer precision tolerances within ±0.0005 inches (±0.0127 mm) or even tighter.

1. Snug PCB Assembly: Your board will sit perfectly on its mounting bosses without wobble.
2. Flawless Port Alignment: Every USB port, HDMI cutout, and button hole will align perfectly with your PCB’s connectors. No more struggling with misaligned ports!
3. Tight Seams: Multi-part enclosures (e.g., a top and bottom lid) fit together seamlessly, creating a professional and high-quality feel.

Superior Material Options and Properties

Our professional CNC machining provides a variety of material options for custom precision PCB enclosures , giving customers more ideas.

1. Aluminum (6061 is most common): The gold standard. It’s strong, lightweight, has excellent thermal conductivity (acting as a heat sink for your board!), and provides innate EMI/RF shielding. It can be anodized in virtually any color for aesthetics and added surface hardness.
2. Brass and Copper: Great for specialized EMI shielding and thermal management. Often used for decorative or heritage products.
3. Engineering Plastics: PEEK, ABS, Nylon, and Polycarbonate. These offer high impact resistance, chemical resistance, and electrical insulation where needed.

Finished Enclosures Surface Treatment

The surface finish of a CNC machined enclosure, housing is in a different league. The tooling marks from a milled surface look and feel professional. Combined with surface post-processing techniques like:

1. Bead Blasting: Creates a uniform, matte, satin finish.
2. Anodizing (for aluminum): Adds color and a protective, hard oxide layer.
3. Painting: For any color you can imagine.
4. Brushing: Creates a distinctive linear, metallic texture.

Exceptional Strength and Durability

A CNC machined electronic enclosure, especially from metal- aluminum, copper, stainless, is incredibly robust. It protects against:

1. Physical Impact: Far more resistant to drops and crushing forces than 3D printed plastic.
2. Heat: Metals and high-temperature plastics can handle much greater thermal loads without deforming.
3. Chemicals: Ideal for industrial or laboratory environments where exposure to solvents or oils is a concern.

Integrated Design Features

With high precision 5-axis CNC machining, you can design complex features directly into the enclosure:

1. Heat Sink Fins: Milling fins directly into the enclosure to passively cool power-hungry components.
2. Internal Cavity: Our five-axis CNC machining can provide more complex inner edge surface processing.
3. Design: Our CNC machining can process complex and diverse appearances according to your design, so you don’t have to think about it anymore.

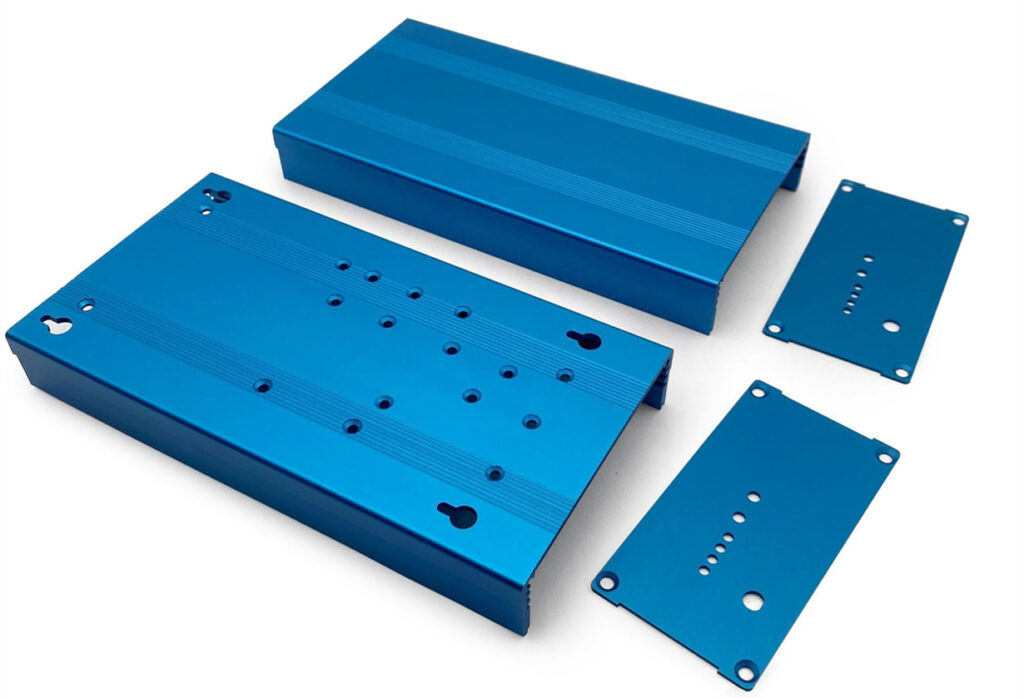

CNC Machined Extrusion Aluminum PCB Enclosures

While extrusion creates the basic shape, CNC machining adds the precision finishing touches:

1. Perfectly milled cutouts for connectors and interfaces
2. Precise mounting points for PCBs and components
3. Custom holes for screws and fasteners
4. Smooth finishing on all exposed surfaces
5. Accurate mating surfaces for seals and gaskets

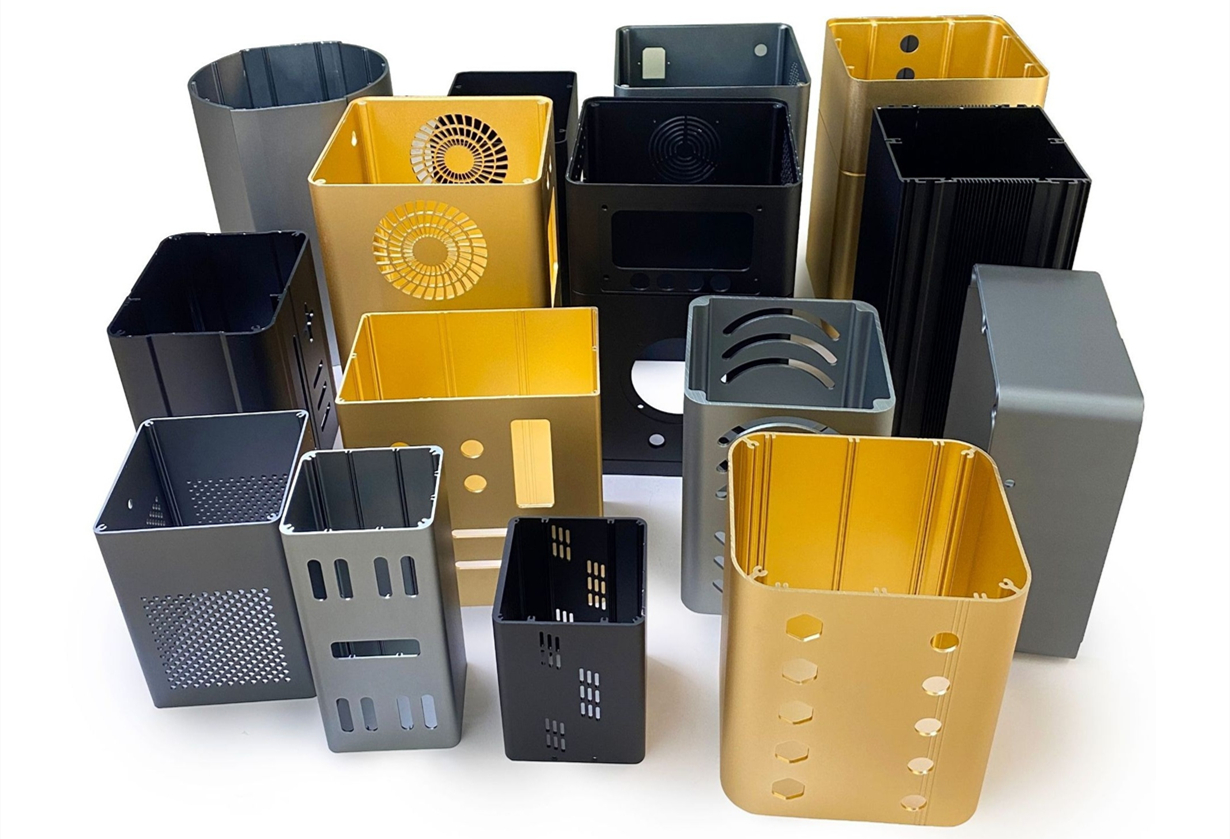

CNC Machining PCB Enclosure Manufacturer

CNC machined extrusion enclosures represent the perfect marriage of manufacturing technologies. They combine the cost-effectiveness and thermal performance of extrusion with the precision and customization capabilities of CNC machining.

Whether you’re developing a new product or upgrading an existing design, this hybrid approach offers the optimal balance of performance, aesthetics, and cost-efficiency.

Ready to create the perfect enclosure for your electronics?
